AMS AML 240 USB
AML 240 USB

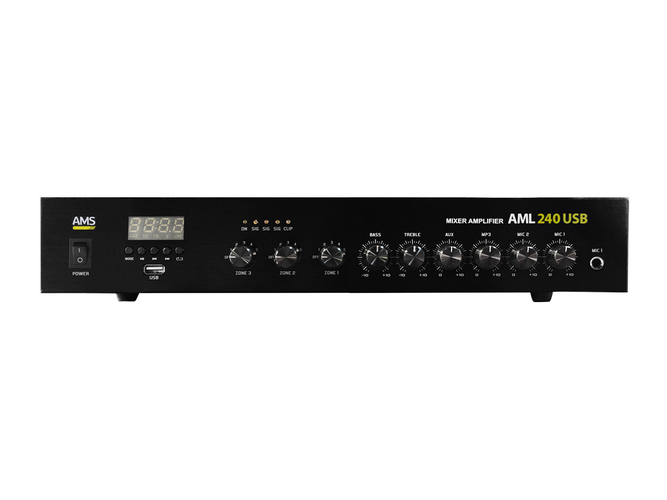

AML 240 USB is an installation mixer/amplifier which can work in low impedance (4–16Ω) as well as in 100V line. It includes 3 input sources (1 AUX + 2 MIC), being one MIC input (MIC 1) with priority. The unit incorporates a USB interface for external audio files as well as Bluetooth connectivity. Therefore, it is possible to send audio files from a smartphone or similar devices. The display shows all the audio track information, operating mode, volume level, track number or time elapsed.
The amplifier includes 3 different output zones with independent volume control, distributing the max power output between the three zones according to the installation requirements.
The possibility to operate in 100V line, the 3-zone configuration and the variety of audio sources types, make it very suitable for a big number of installations: offices (like background music and news), schools, shops or conference rooms.
Technical data:
| Specification | Value |
|---|---|
| Amplifier (Power output) | 240W (total output) low impedance and 100V line |
| Input sensitivity | MIC (35mV) – AUX (0.775V) |
| Frequency response | 70 Hz - 18 kHz |
| S/N Ratio | MIC > 66 dB / AUX > 70 dB |
| Harmonic Distortion | 0,1% at 1 kHz |
| Bass tone | ±10dB @ 100Hz |
| Treble tone | ±10dB @ 10 kHz |

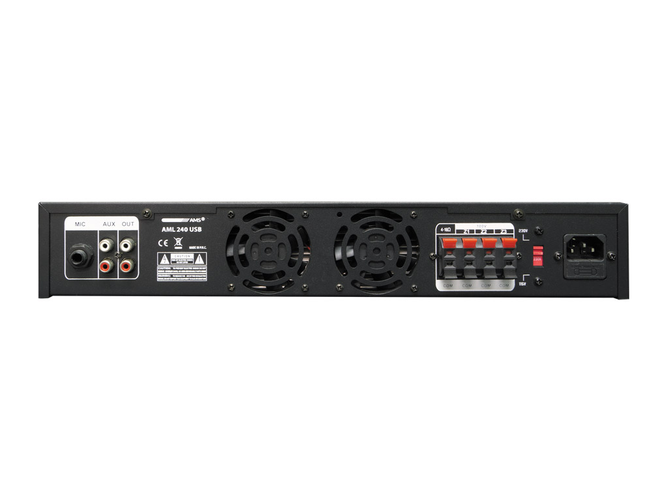

| Connections | RCA: AUX input. XLR3: Microphone (1, 2). Terminals: Outputs |
| Main Supply | AC 115/230V AC - 50/60 Hz |
| Dimensions (WxHxD) | 400 × 66 × 270 (mm) |
| Weight | 4.9 Kg |
Features:
- Installation mixer/amplifier.
- Low impedance (4–16Ω) / 100V line operation.
- 1 AUX + 2 MIC inputs.
- Mic 1 input with priority function.
- 3 output zones.
- Bluetooth connectivity.
- USB interface.
- 2 tone control.
-
