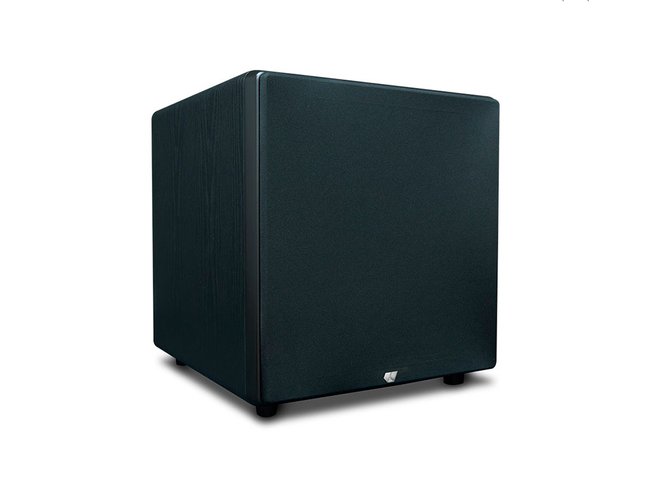

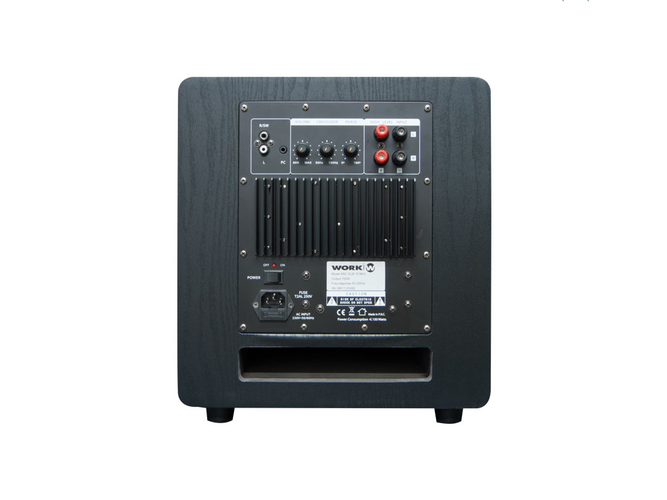

ARC SUB 10 MKII is a self-powered subwoofer integrating a 150 W power amplifier and a high-performance 10" woofer. The amplifier is equipped with several controls, allowing you to configure parameters such as output gain, crossover frequency or phase inversion. ARC SUB 10 MKII features 2 input types: LINE full-range input (RCA L-R and stereo mini-jack) and High Level stereo input for direct connection between external amplifiers and the satellite system. Their robust design, elegant finish (in high-density wood) and their shape, they are very suitable in reinforcement systems such as conference rooms, schools or home cinema installations.
| Type | Amplified |
| Transducer | Woofer 10" |
| Power | 75W RMS/150W Program0 / 150 W @ 4 Ohm |
| Sensitivity | Line: 500 mV, High Level: 8V |
| Frequency Response | 50 hz - 200 hz |
| Crossover | 50 Hz - 150 Hz (selectable) |
| Connections | RCA: full-range or mono (L,R) + Minijack: stereo LINE level; Banana: stereo High Level Inputs |
| Power supply | 230V AC - 50/60 hz |
| Dimensions | 345 x 325 x 394 mm |
| Weight | 16.5 Kg |
-
