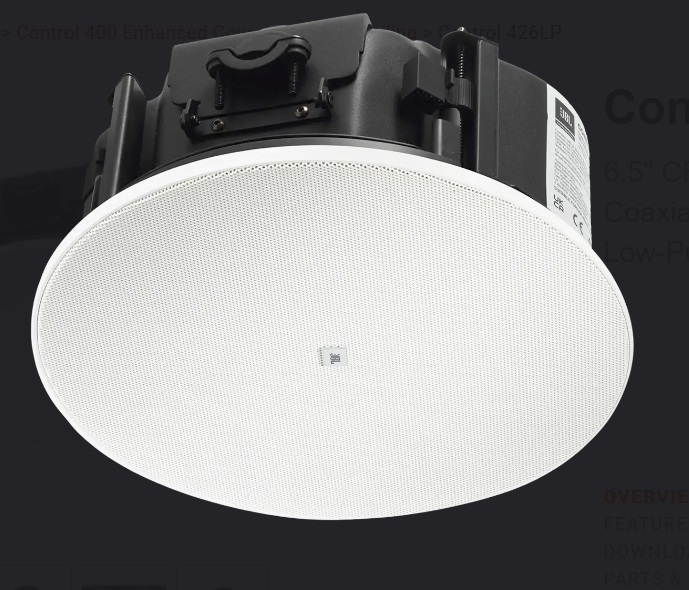

JBL C426LP

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 110° of consistent, full, rich sound character that closely matches that of the Control 426C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 426LP includes a transformer to support both 70V/100V and low impedance applications. Superior Sonic Performance The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space. Efficient, Flexible Installation Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses. Refined, Modern Aesthetics Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility. Features Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted CRBI™ technology for consistent sound coverage Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input Full-face, easily-paintable magnetic grilles Black and square magnetic accessory grilles available Top and side exit cable entry options Robust and adaptable dogears for wide range of ceiling thicknesses IP33 rated Specifications Frequency Range (-10 dB) 95 Hz – 19 kHz Power Capacity 110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs) Sensitivity (1m/1W) 89dB Coverage Angle 110° conical Maximum SPL (1m) 109 dB continuous pink noise (115 dB peak) Nominal Impedance 12Ω Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W Drivers LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly Ceiling Cutout Size 223 mm (8.8 in) Dimensions 107 mm (4.2 in) H x 253 mm (9.9 in) dia. 98 mm (3.9 in) from bottom of ceiling tile to top of backcan Safety Agency Rating Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed. Environmental IP33 rating per EN/IEC 60529. Operating temperature 0°C to 45°C Optional Accessories JBL-MTC-426BG black (RAL9004) round grille JBL-MTC-426SG white (RAL9003) square grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles Color Stock grille is White (RAL9003), paintable Net Weight (ea) 3.9 kg (8.6 lbs) Shipping Weight (pair) 12.58 kg (27.73 lbs)
